Specifications
576mm x576mm panel size.
Die-casting Aluminum,slim and lightweight. 12kg.
Brightness over 5500CD/m^2
Outdoor Die-casting Aluminum Rental LED Display P6,P6.25,P8,P10
Famous Brands Raw Material Selection
1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective
phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Technicail Specification:
Outdoor SMD 3 in 1Die-cast aluminum full color LED Display | |||||
Module | Pitch/mm | P6 | P6.25 | P8 | P10 |
| Module size/mm | 288x288 | 250x250 | 320x320 | 320x320 |
| Density of pixel/(dots/m2) | 27,777 | 25,600 | 15,625 | 10,000 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Resolution of module | 48X48 | 40X40 | 40X40 | 32X32 |
Main | Optimum viewing distance | 6-16m | 6.25-16.25m | 8-20m | 10-25m |
| View angle / ° | 160 H,120 V | 160 H,120 V | 160 H,120 V | 160 H,120 V |
| Size of cabinet/mm | 576x576 | 500x500 | 640x640 | 640x640 |
| Resolution of cabinet | 96X96 | 80X80 | 80x80 | 64X64 |
| Weight of cabinet/kg | 9.5 | 8.9 | 13 | 13.8 |
| Driving method | 1/8 scan constant current | 1/4 scan constant current | 1/4scan constant current | 1/4 scan constant current |
| Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 |
| Luminance of white balance | ≥5500 | ≥5500 | ≥5500 | ≥5500 |
| Operation of Environmental Temperature/°C | below 30 to above 50 | |||
| Working vlotage | 110-220 VAC/+/- 10% | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||
| Control system | linsn(sending card,receiving cards and Hubs) | |||
| Average of non-failure life | >50,00h | |||
| Life span | >100,000h | |||
| Functionaless dot rate | <0.0001 | |||

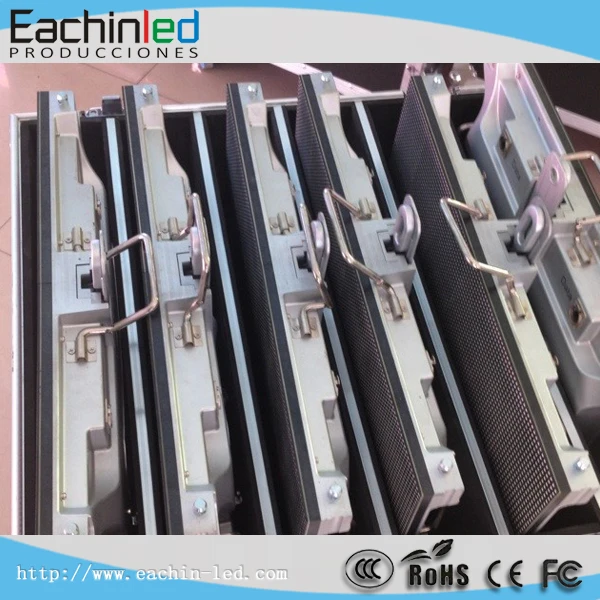

Six pcs panels in one flight case.

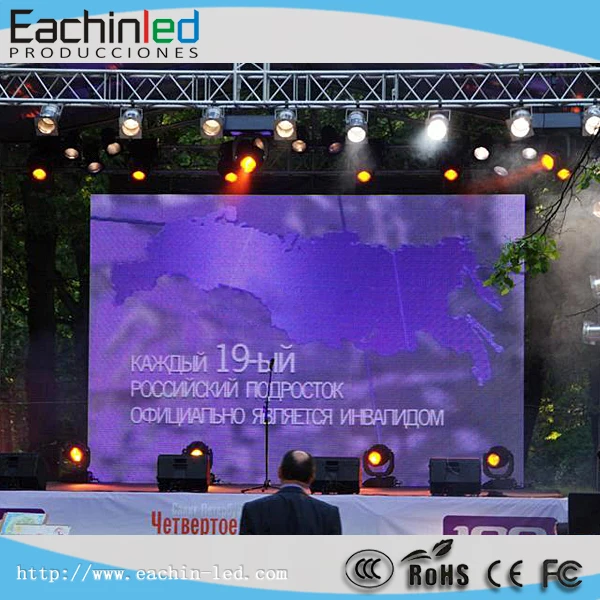

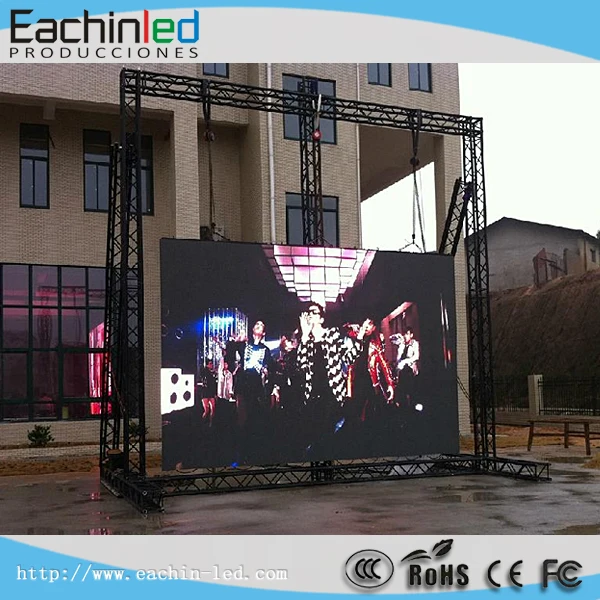

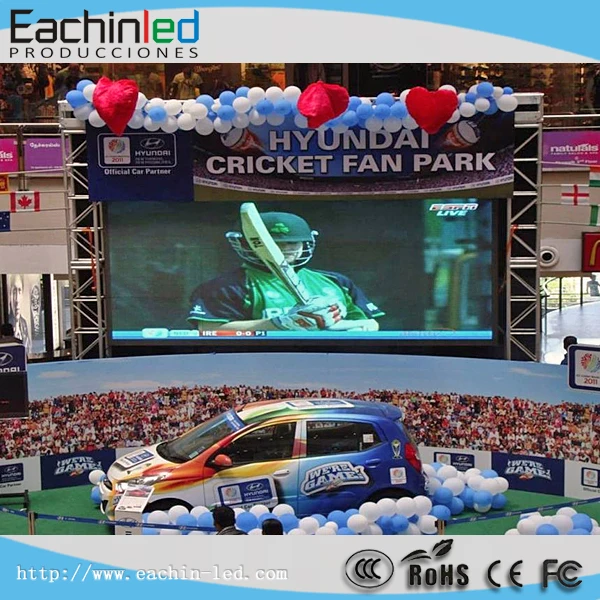

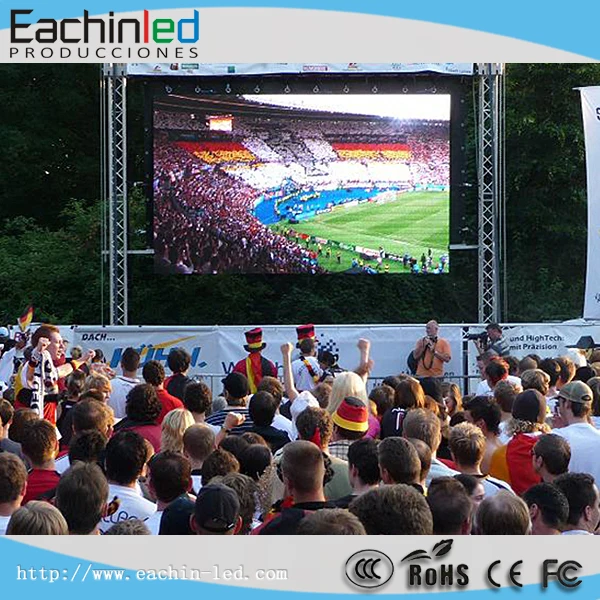

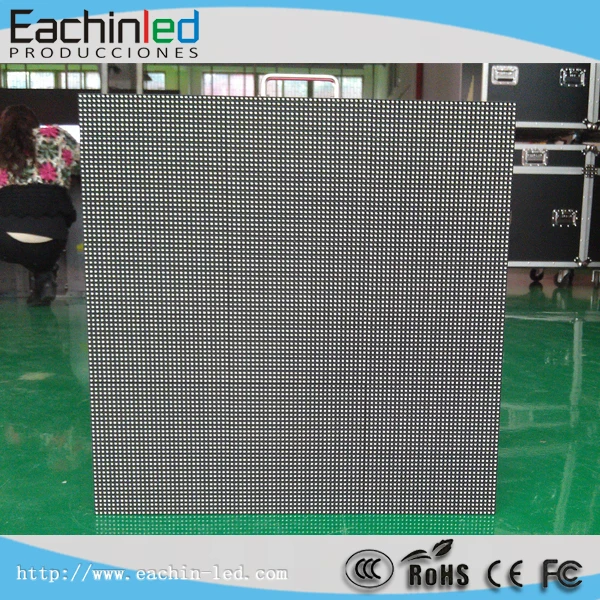

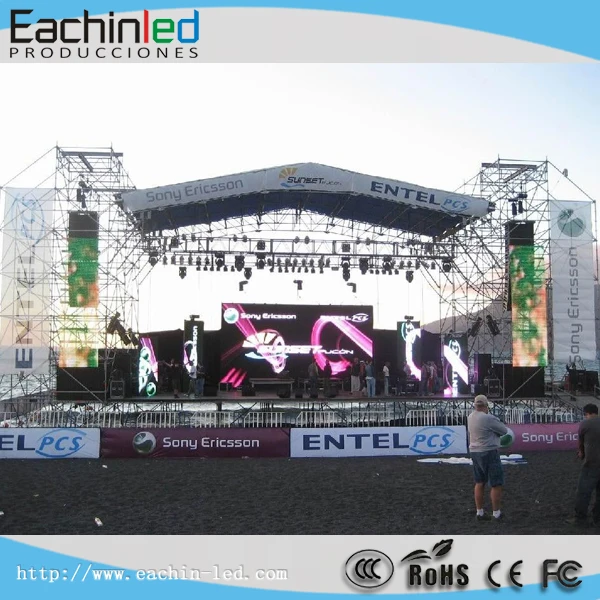

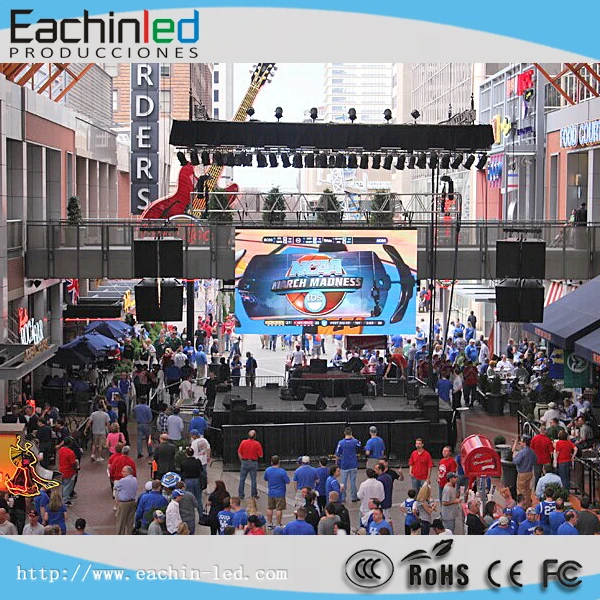

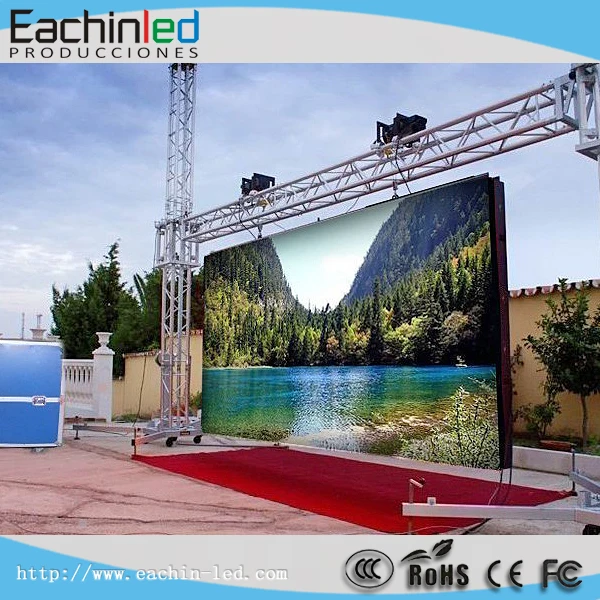

Gallery:
1)Reply your inquiry in 24 working hours.
2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc
3)Customized design is available,OEM & ODM are welcomed.
4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5)Special discount and protection of sales area provided to our distributor.
6)Warmly welcome your visit in our company if available.
7)Warranty: 24 months, a little investment for longer warranty time.
