3D LED Display Stageback LED Wall Stage LED Display P6

FOB Reference Price:Get Latest Price
US $1,470-2,530 / Square Meters | 6 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Eachinled
Model Number:
P6mm SMD3535
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
6mm
Screen Dimension:
576x576mm
LEDs:
Nationstar
Power Supply:
YHY/G-energy Slim Module
IC:
SUM2016/2017
Driving Method:
1/8 scan
Luminance of white balance:
Above 5500nits
Viewing angle:
140H,120V
Panel size:
576mmx576mm
Features:
Aluminum
Application:
Live events led display
certificates:
CE,RoHs,CCC,ISO9001
Supply Ability
Supply Ability:
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Anti-seismic Flight Case
Wooden Case
Port
Shenzhen
Lead Time :
15 working days after deposit received

Specifications

576mm x576mm panel size.
Die-casting Aluminum,slim and lightweight. 12kg.
Brightness over 5500CD/m^2



Outdoor Die-casting Aluminum Rental LED Display P6,P6.25,P8,P10

Product Description

Famous Brands Raw Material Selection



1)LED: well-known international brand,with wide viewing angle ,little attenuation ,good heat dissipation, and vivid colors.



2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective

phenomena, such as dark bright, virtual light and so on.



3) Power supply: industrial-strength brand.The power maximum power resere of 20% the space , the range of voltage fluctuation is less 5%, high stability.



4) Connector: Aerial grade brands ensure the stable transmission of power and signal.



5) PCB Board: adopt 4-layer design.



6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.

 The replacement of any cabinet can be done within 50 seconds.





Technicail Specification:



                       Outdoor SMD 3 in 1Die-cast aluminum full color LED Display

Module

Pitch/mm

P6

P6.25

P8

P10



Module size/mm

288x288

250x250

320x320

320x320



Density of pixel/(dots/m2)

27,777

25,600

15,625

10,000



Pixel composition

1R1G1B

1R1G1B

1R1G1B

1R1G1B



Led encapsulation

SMD3535

SMD3535

SMD3535

SMD3535



Resolution of module

48X48

40X40

40X40

32X32

Main

Optimum viewing distance

6-16m

6.25-16.25m

8-20m

10-25m



View angle / °

160 H,120 V

160 H,120 V

160 H,120 V

160 H,120 V



Size of cabinet/mm

576x576

500x500

640x640

640x640



Resolution of cabinet

96X96

80X80

80x80

64X64



Weight of cabinet/kg

9.5

8.9

13

13.8



Driving method

1/8 scan constant current

1/4 scan constant current

1/4scan constant current

1/4 scan constant current



Refresh rate Hz/S

≥600

≥600

≥600

≥600



Luminance of white balance

≥5500

≥5500

≥5500

≥5500



Operation of Environmental Temperature/°C

below 30  to  above 50



Working vlotage

110-220 VAC/+/- 10%



Grey scale/color

displaying colors≥16.7M(synchronized)



Brightness adjustment

256 levels of each color(manually),100 levels of each color(automatically)



Input signal

RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc



Control system

linsn(sending card,receiving cards and Hubs)



Average of non-failure life

>50,00h



Life span

>100,000h



Functionaless dot rate

<0.0001





Company Information









Packaging & Shipping

 Six pcs panels in one flight case.

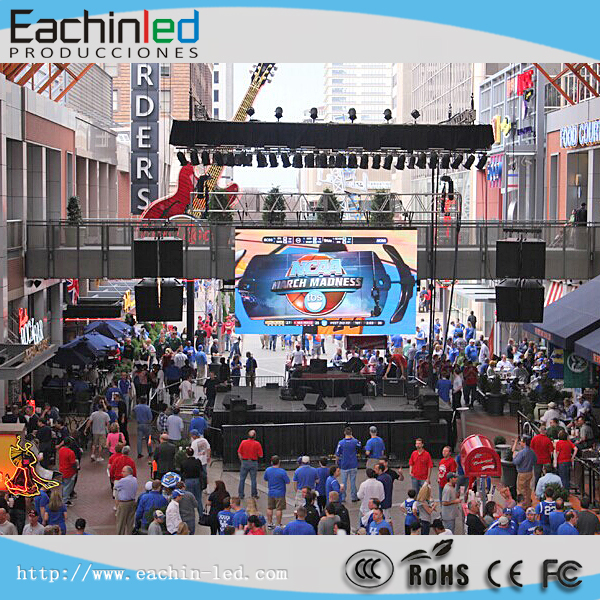

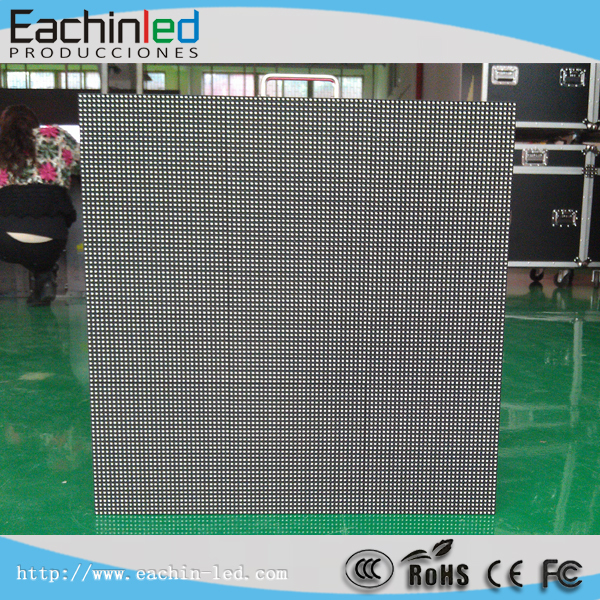

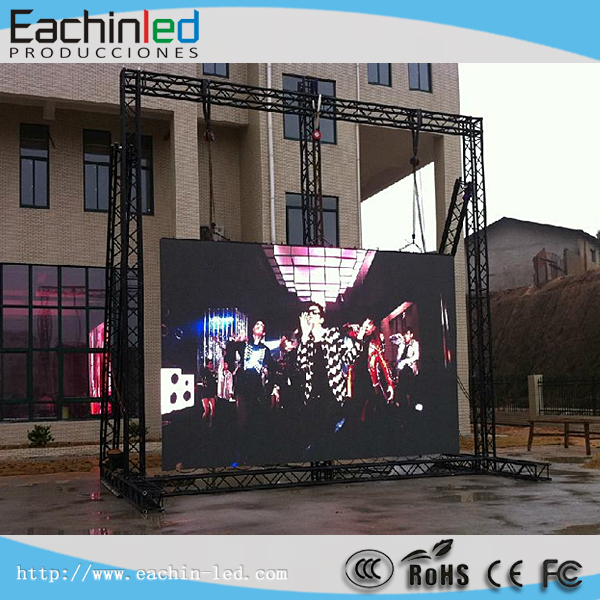

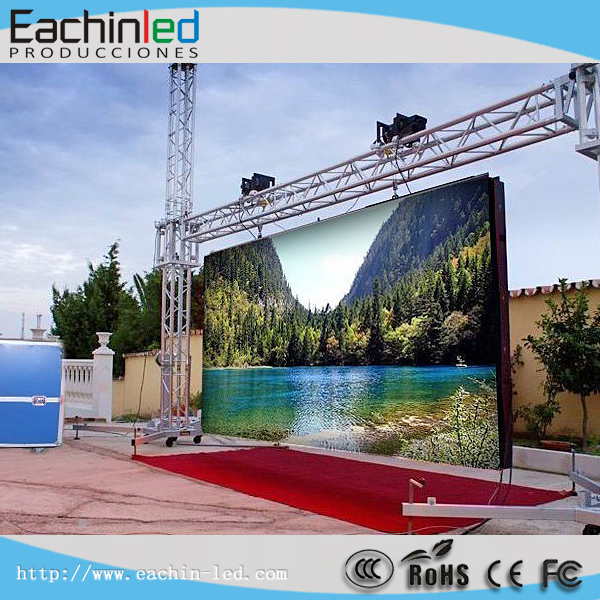

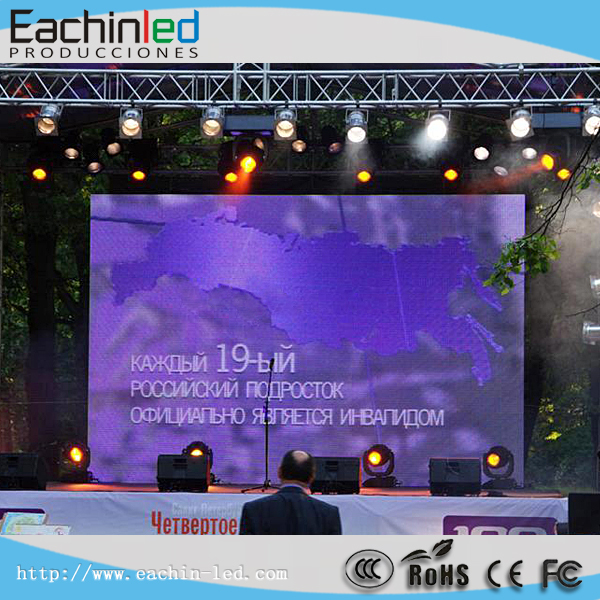

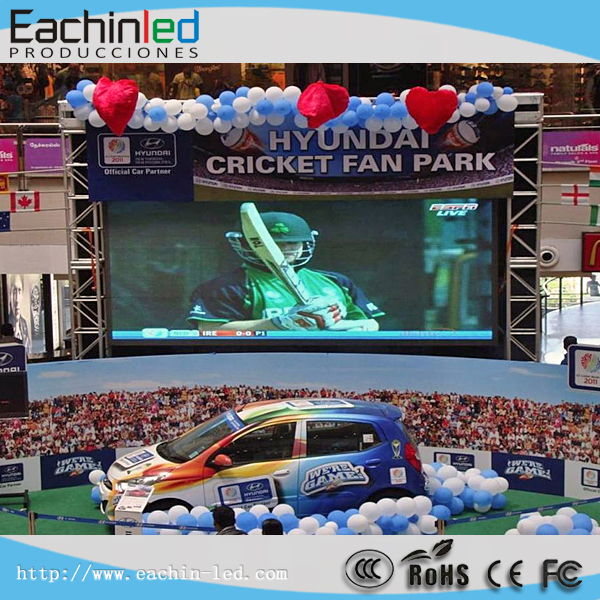

Gallery:










1 (7).jpg



0 (6).jpg


























Our Services

 1)Reply your inquiry in 24 working hours.


2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc

3)Customized design is available,OEM & ODM are welcomed.

4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5)Special discount and protection of sales area provided to our distributor.

6)Warmly welcome your visit in our company if available.

7)Warranty: 24 months, a little investment for longer warranty time.
