3G/GPRS/WIFI P3 indoor digital billboard

FOB Reference Price:Get Latest Price
US $600-1,200 / Square Meters | 6 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Eachinled
Model Number:
P3mm SMD2121
Usage:
Indoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
3 mm
Screen Dimension:
576mmx576mm
LEDs:
Nationstar
Power Supply:
YHY/G-energy Slim Module
IC:
SUM2016/2017
Driving Method:
1/16 scan
Luminance of white balance:
Above 1200nits
Viewing angle:
140H,120V
Panel size:
576mmx576mm
Features:
Iron
Application:
indoor advertising
certificates:
CE,RoHs,CCC,ISO9001
SupplyAbility
SupplyAbility:
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Anti-seismic Flight Case
Wooden Case
Port
Shenzhen
Lead Time :
15 working days after deposit received

3G/GPRS/WIFI P3 indoor digital billboard

Product Description

1) To ensure the clearness of graphics and texts, use the same level of red,green and blue LED lamps with the same brightness( ±10%)and wave length( ±2.5nm) are chosen.



2)The glue we apply to encapsulate the module surface is imported from Sourth Korea. It decreases the effect of background color. As a result of the full absorption of thr LED refraction light,the display eliminate the urmbra and ghosting during broadcast.



3)We apply sophisticated technology of plastic closure,each module of the horizontal height less than 0.1mm.Therefore,our displays have good color uniformities ,homogeneity,which is unique in the LED display field.



4)Module design makes it convenient to assemble and also ensure that the cabinets are nice-looking.



5)Maitenance difficulties are slolved and it truely realizes three-dimensional and dot-to-dot maiterance.



6)The price is competitive among the same products in market and the quality is assured.



Technicail Specification:

                                                                         Indoor SMD Fixed Iron Box full color LED Display

Module

Pitch/mm

P3



Module size/mm

192x96



Density of pixel/(dots/m2)

111111



Pixel composition

1R1G1B



Led encapsulation

SMD2121



Resolution of module

64X32

Main

Optimum viewing distance

4-14m



View angle / °

160 H,120 V



Max power consumption/W/M2

2,300

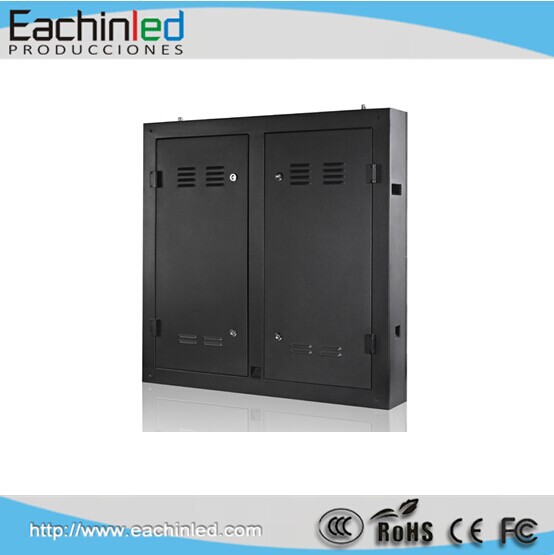

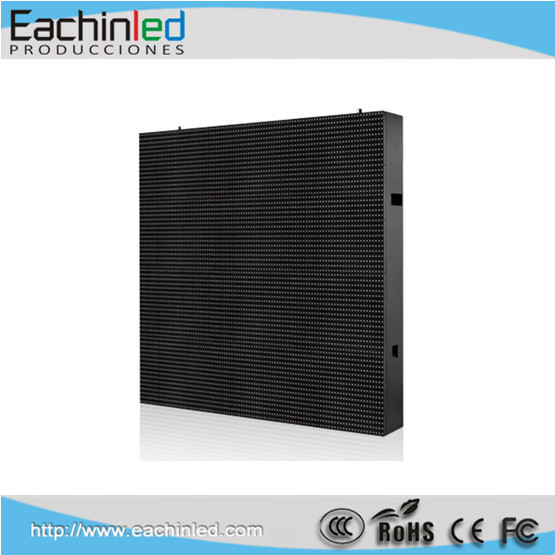

Size of cabinet/mm

576x576



Weight of cabinet/kg

9



Driving method

1/16 scan constant current



Frame frequency / Hz/S

≥360



Refresh rate Hz/S

≥600



Luminance of white balance

≥1500 nits



Operation of Environmental

 Temperature/°C

below 30  to  above 50



Working vlotage

110-220 VAC/+/- 10%



Grey scale/color

displaying colors≥16.7M(synchronized)



Brightness adjustment

256 levels of each color(manually),

100 levels of each color(automatically)



Input signal

RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc



Control system

linsn(sending card,receiving cards and Hubs)



Average of non-failure life

>50,00h



Life span

>100,000h



Functionaless dot rate

<0.0001



Company Information







Packaging & Shipping

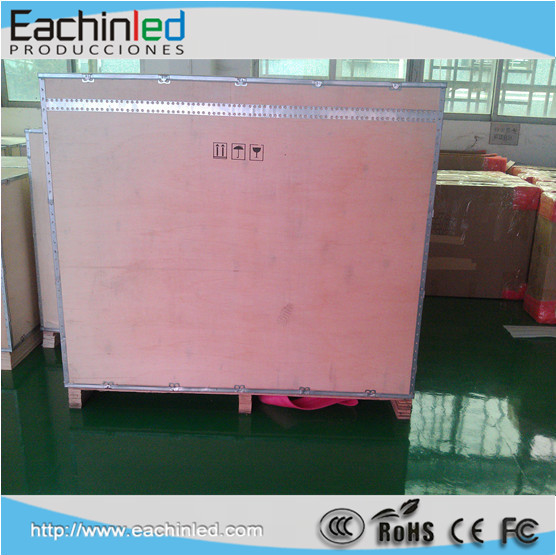

 Two pcs cabinet in one wooden case.

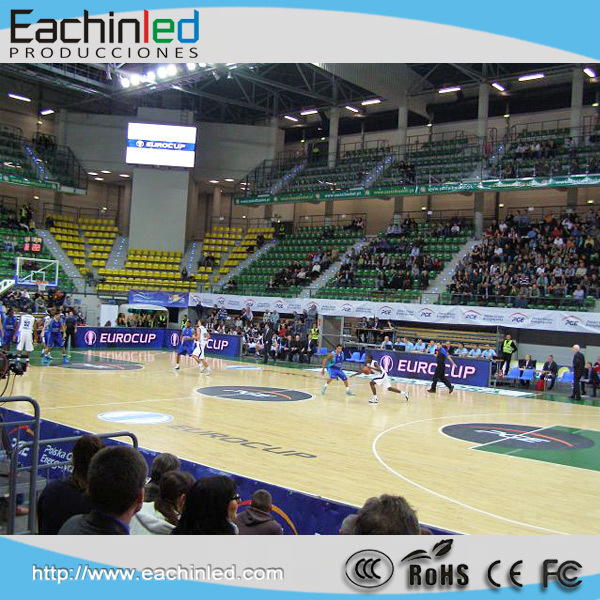

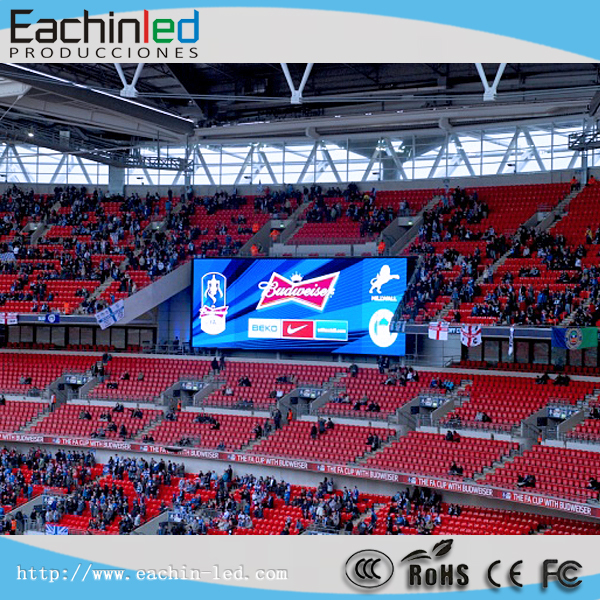

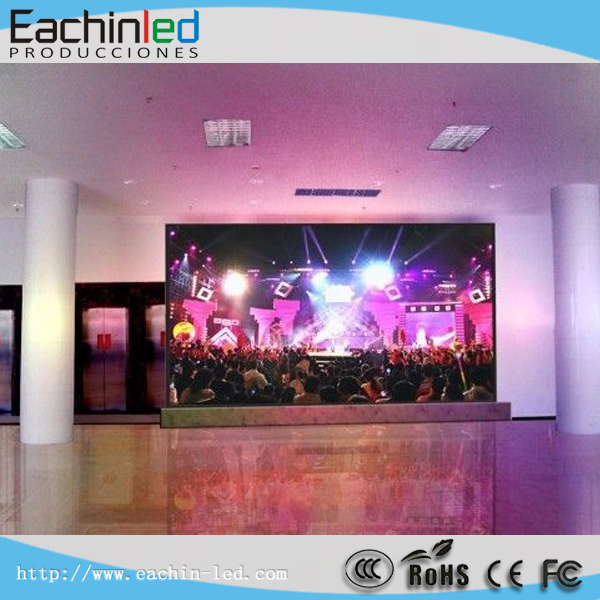

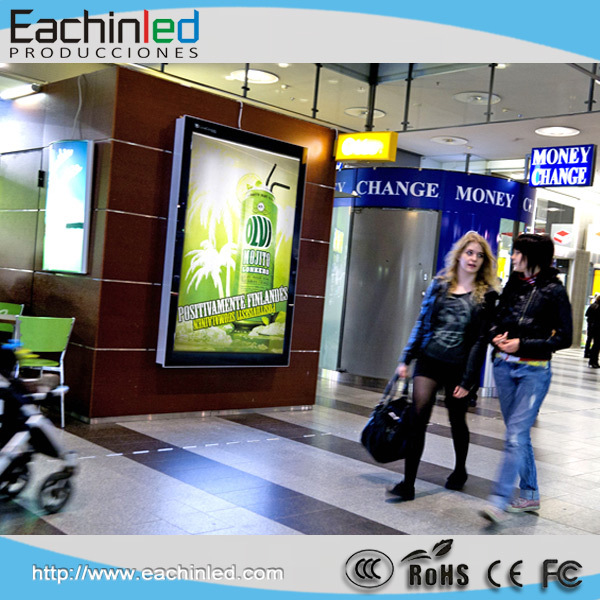

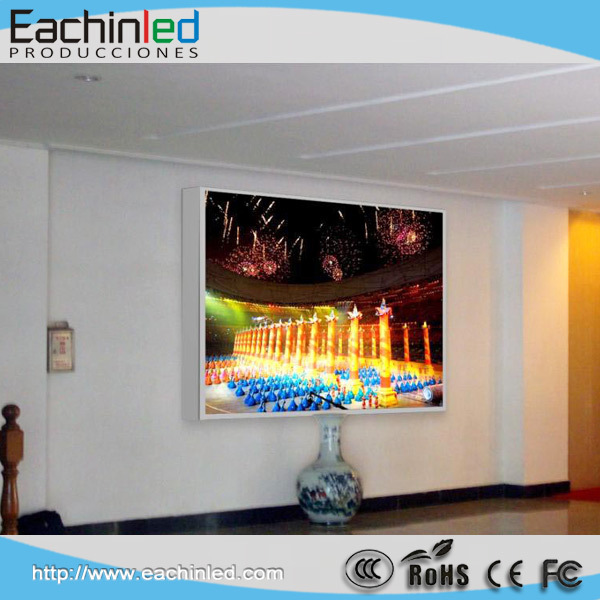

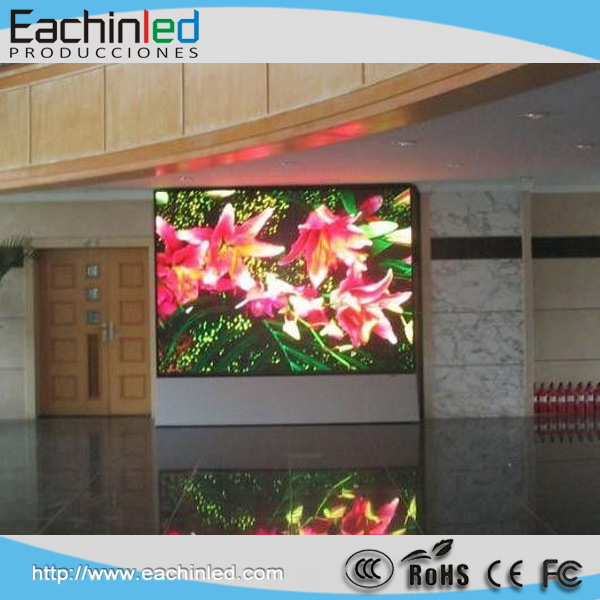

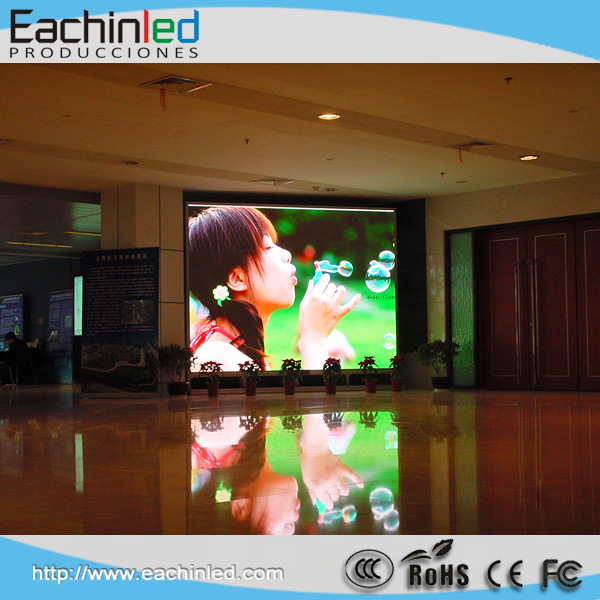

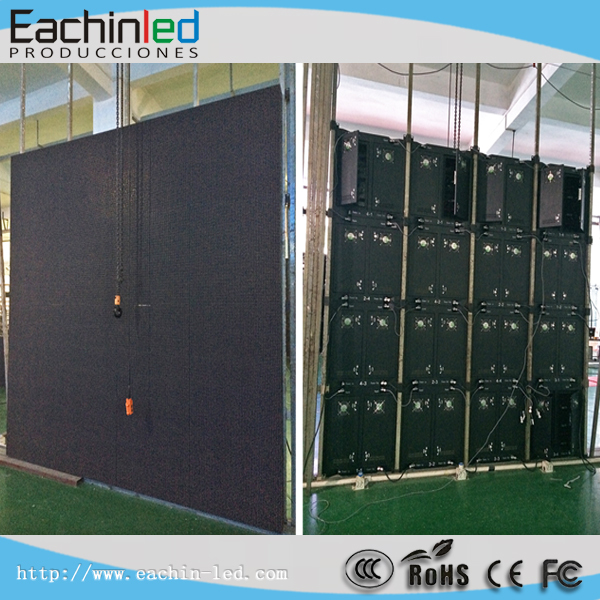

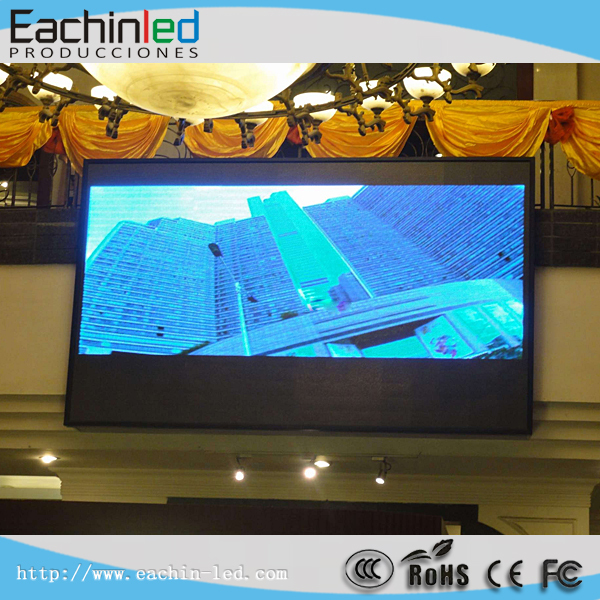

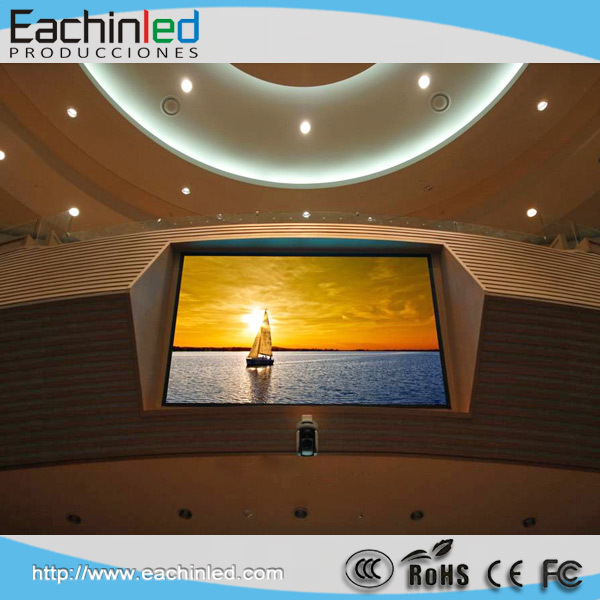

Gallery:































Our Services

 1)Reply your inquiry in 24 working hours.


2)Experienced staffs answer all your query in fluent English,Spanish,French,German etc

3)Customized design is available,OEM & ODM are welcomed.

4)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5)Special discount and protection of sales area provided to our distributor.

6)Warmly welcome your visit in our company if available.

7)Warranty: 24 months, a little investment for longer warranty time.
